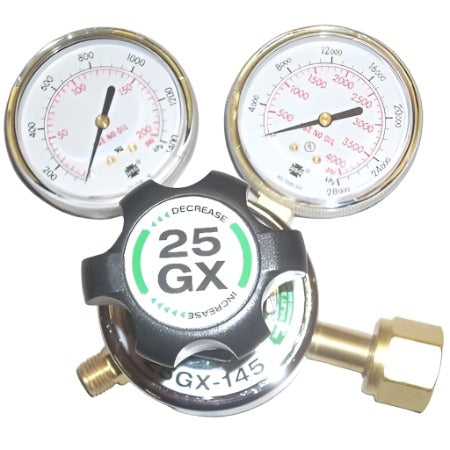

Harris 25GX-145-540 Oxygen Regulator

Harris 25GX-145-540 Oxygen Regulator

  • $ 74.95


Harris 25GX-145-540 Oxygen Regulator
Features:
Origin: Made in the USA in an ISO 9001 and 14001 certified facility.
Quality: 100% tested, 100% of the time
Safety: Meets or exceeds all relevant industry standards - UL listed and CGA E-4. Passes all CGA E4 ignition tests.
Capacity: Medium/Heavy Duty Reliability: One-piece encapsulated seat prevents damaging particles from entering the high pressure valve seat.
Design: Ergonomic, modern design, allows for precise pressure adjustments. Knob offer additional protection by shrouding the bonnet housing. Outlet angle improved for LP cylinder clearance. Delivery Pressures: 0-15, 0-50, 0-145, 0-200, 0-250, and 0-500 PSIG Pressure Regulation: Excellent pressur regulation from full to empty cylinder.
Warranty: 7 years
Materials: Body: Forged brass Bonnet: Chrome plated Zamac 3 Gauges: 2 1/2", steel case, multi-scale guages
Diagphragm: Neoprene, fiber reinforced Nozzle: Brass Seats: PTFE Teflon Filters: Nickel plated sintered bronze 10 micron Seat Return Spring: PH 17-7 Stainless Steel Adjusting Knob: ABS, UB resistant, composite knob
Outlet: Brass
